• Country
• United States of America (USA)

• Manufacturer / Brand
• Sherwood, Chicago

• Year
• 1965–1967 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 225626

• Number of Transistors
• 20

• Semiconductors
• 2N3054 2N3054 2N3054 2N3054

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 115-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (50 W max.)

• Material
• Metal case

• from Radiomuseum.org

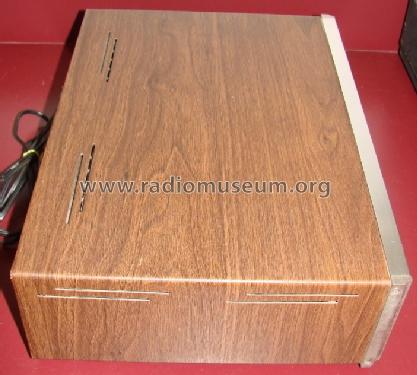

• Model: 50 Watt Solid-State Stereo Amplifier S-9500 - Sherwood, Chicago

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14.25 x 4 x 12.5 inch / 362 x 102 x 318 mm

• Notes

• Silicon Transistorized integrated amplifier, with Phono Level control.

• Net weight (2.2 lb = 1 kg)
• 20 lb (20 lb 0 oz) / 9.080 kg

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
