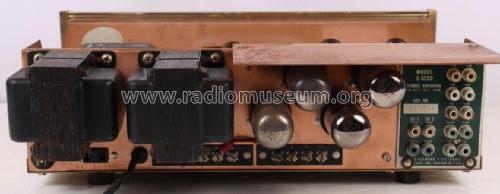

Stereo Amplifier S-5500

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sherwood, Chicago

• Year
• 1965 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 115822

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AX7 12AX7 7591 7591 7591 7591

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Amplifier S-5500 - Sherwood, Chicago

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14.25 x 5 x 13 inch / 362 x 127 x 330 mm

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
