• Country
• United States of America (USA)

• Manufacturer / Brand
• Sherwood, Chicago

• Year
• 1978–1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 237381

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 51

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

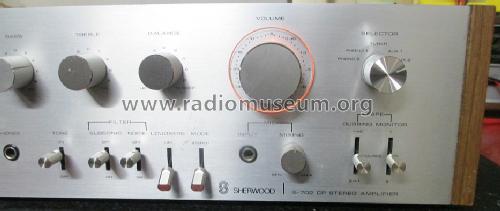

• Model: Stereo Amplifier S-702CP - Sherwood, Chicago

• Shape
• Book-shelf unit.

• Notes

• Sherwood Stereo Amplifier Model S-702CP.
  Bass-, Treble-Control, Speakers A, B, A+B, Loudness, SubSonic Filter, Mic Mixing.
  Tape Dubbing, Phono1 IN, Phono2 IN, AUX1 IN, AUX2 IN, Tuner IN.
  Wooden Side Panels.
  AC Outlets: Switched 100 Watts max., Unswitched 150 Watts max..
  Made in Korea.

  Die Leistungsaufname beträgt zwischen 15W (Ruhebetrieb) und maximal 250W.

  Die angegebene Ausgangsleistung bezieht sich auf 8Ω-Aschluß (20 Hz bis 20 kHz).

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
