Stereo FM-MX Receiver S-8000 IV (4) no AM input
Sherwood, Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sherwood, Chicago
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 279750

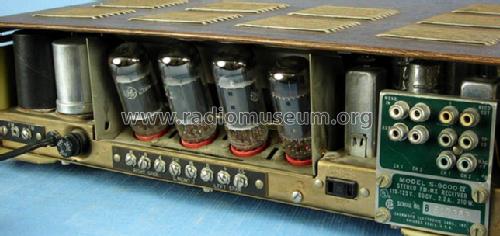

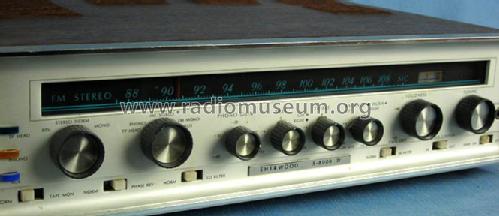

aus ebay, Verkäufer coltur75
aus ebay, Verkäufer coltur75
aus ebay, Verkäufer coltur75
aus ebay, Verkäufer coltur75
aus ebay, #121531768424, Verkäufer myostuff
aus ebay, #121531768424, Verkäufer myostuff
- Number of Tubes
- 19
- Valves / Tubes
- 6EU7 6EU7 6EU7 6EU7 6BS8 6GH8 6AU6 6AU6 6BN6 6GH8 6EU7 6EU7 12AU7 12AT7 6GH8 7868 7868 7868 7868
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 12 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 115-125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 72 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo FM-MX Receiver S-8000 IV [no AM input] - Sherwood, Chicago
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 16.5 x 4.5 x 14 inch / 419 x 114 x 356 mm
- Notes
-
FM stereo receiver Sherwood S-8000 IV without AF input for an AM-Tuner.
See also model S-8000 IV with additional input jack for an ext. AM tuner.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
