• Country
• Italy

• Manufacturer / Brand
• SIARE (-Crosley); Piacenza

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 322410

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6V6G 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 411 [4 gamme] - SIARE -Crosley; Piacenza

• Notes

• Ingresso per giradischi. Controllo di tono

  Vedi anche modello 411 I serie et 411 II serie con 3 gamme d'onda.

• Mentioned in

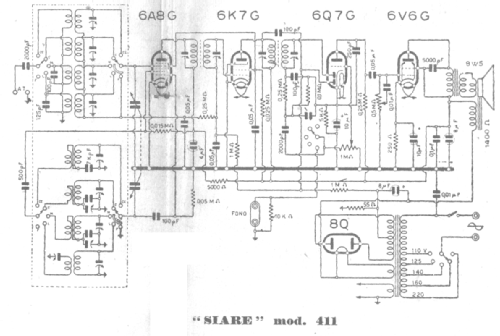

• -- Schematic

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
