• Country
• Italy

• Manufacturer / Brand
• SIARE (-Crosley); Piacenza

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231952

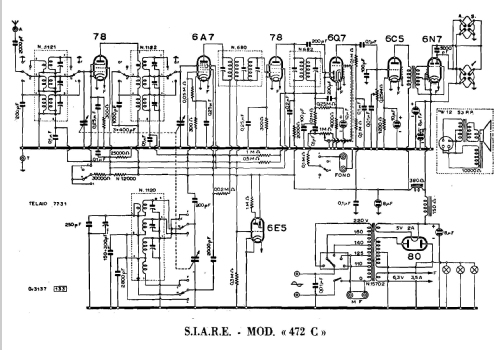

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 78 6A7 78 6Q7 6C5 6N7G 80 6E5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 472C - SIARE -Crosley; Piacenza

• Shape
• Console with any shape - in general

• Author
• Model page created by Leonardo Mureddu. See "Data change" for further contributors.
