• Country
• Italy

• Manufacturer / Brand
• SIARE (-Crosley); Piacenza

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175610

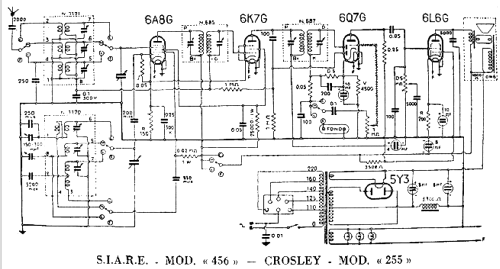

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6L6G 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 20 cm = 7.9 inch

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Crosley 255A - SIARE -Crosley; Piacenza

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 530 x 400 x 310 mm / 20.9 x 15.7 x 12.2 inch

• Notes
• il gruppo di alta frequenza, i trasformatori di media frequenza ed il trasformatore di alimentazione sono della ditta Geloso di Milano

• Source of data
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
