Emerson A1015 Fono
SICART; Milano
- Country
- Italy
- Manufacturer / Brand
- SICART; Milano
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 195510
-
- Brand: Emerson-Sicart

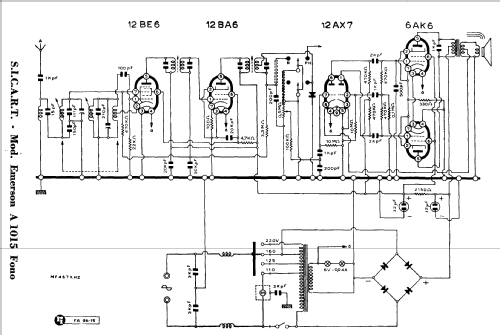

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- GEX35
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Emerson A1015 Fono - SICART; Milano
- Literature/Schematics (1)
- Il Manuale del Radiomeccanico (Vol.3°)
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
