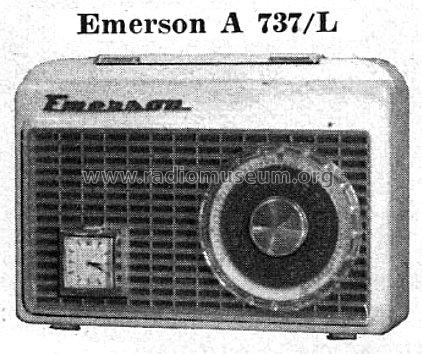

Emerson A737/L
SICART; Milano
- Country
- Italy
- Manufacturer / Brand
- SICART; Milano
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 208654
-
- Brand: Emerson-Sicart
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 110-220 / ( 45 + 1,5 ) Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.15 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Emerson A737/L - SICART; Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 165 x 115 x 50 mm / 6.5 x 4.5 x 2 inch
- Notes
- Differisce dal mod. A 737 per avere un orologio in aggiunta alla griglia frontale.
- Net weight (2.2 lb = 1 kg)
- 0.850 kg / 1 lb 14 oz (1.872 lb)
- Price in first year of sale
- 45,000.00 ITL
- Mentioned in
- Catalogo ANIE (1956-57)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 22 models, 15 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from SICART; Milano
