• Country
• Italy

• Manufacturer / Brand
• SICART; Milano

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195509

• • Brand: Emerson-Sicart

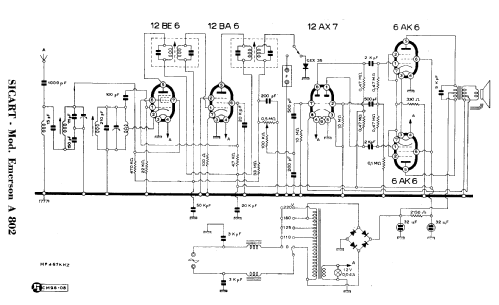

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AX7 6AK6 6AK6

• Number of Transistors

• Semiconductors
• GEX35

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

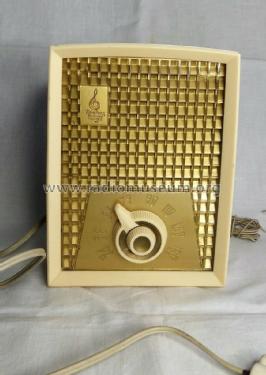

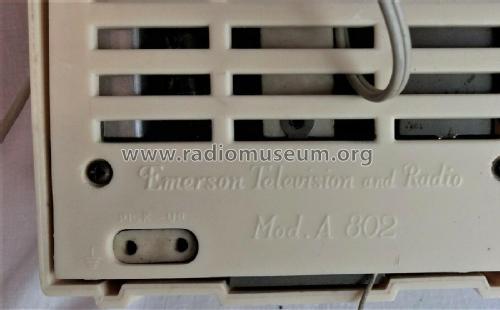

• Model: Emerson A802 - SICART; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 128 x 167 x 96 mm / 5 x 6.6 x 3.8 inch

• Price in first year of sale
• 26,000.00 ITL

• Mentioned in
• Catalogo ANIE (1956-57)

• Literature/Schematics (1)
• Il Manuale del Radiomeccanico (Vol.3°)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
