• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1930–1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232830

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• REN804 or REN904 RE134 RGN354

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast and LongWave in ONE range.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: 22W [Metall] - Siemens & Halske, -Schuckert

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 170 x 130 mm / 10.6 x 6.7 x 5.1 inch

• Notes

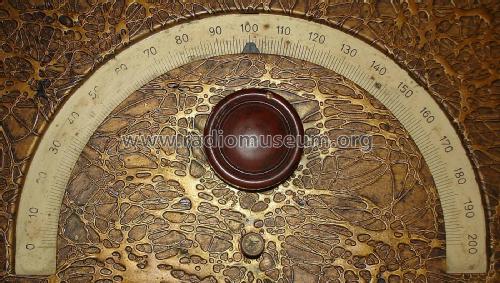

• Riesenskala. Metallgehäuse.

  Katalog Prohaska 1930/31 beschreibt Siemens 22W im Holzgehäuse.

  Preis mit REN 804, RE 134 und RGN 354 RM 97,50 (1931)
  Preis mit REN 904, RE 134 und RGN 354 RM 96,- (1931)

  1932 wurde der Preis incl. Röhrensatz auf RM 69,50 reduziert.

• Price in first year of sale
• 97.50 RM

• Mentioned in
• - - Manufacturers Literature (Siemens Prospekt 1931)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
