- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5503
Click on the schematic thumbnail to request the schematic as a free document.

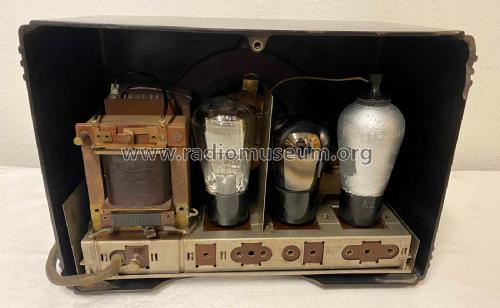

- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.

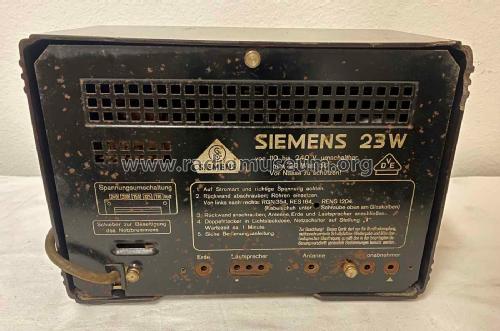

- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Bakelite case
- from Radiomuseum.org

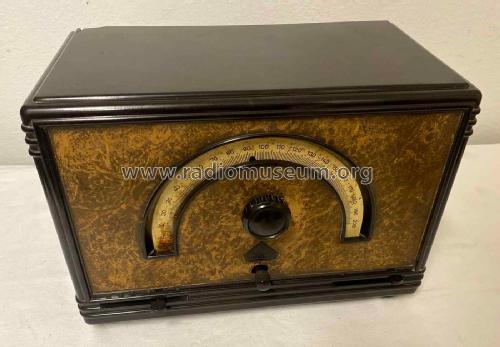

- Model: 23W - Siemens & Halske, -Schuckert
- Dimensions (WHD)
- 284 x 205 x 160 mm / 11.2 x 8.1 x 6.3 inch
- Notes
-
Siehe auch Paralleltype Telefunken 122W mit anderem Gehäuse.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Price in first year of sale
- 119.00 RM !
- Source of data
- Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
- Mentioned in
- Funk Versand Kredit 1932/33

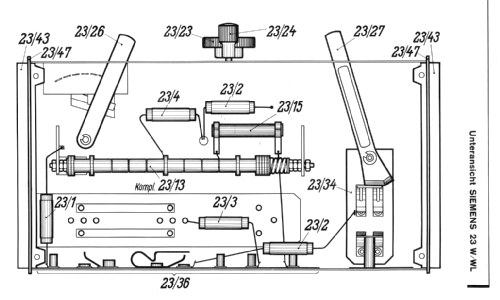

- Literature/Schematics (1)
- -- Schematic (OTO-Schaltungen)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
