• Country
• Hungary

• Manufacturer / Brand
• Siemens; Budapest

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121739

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH21 UCH21 UBL21 UY21 UM4

• Main principle
• ZF/IF 472 kHz; 7 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

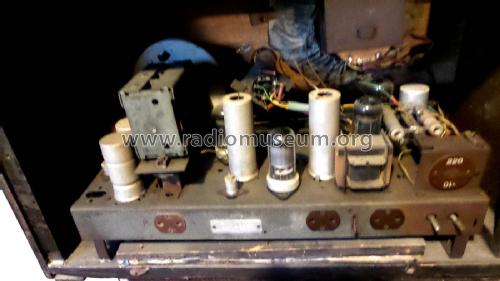

• Model: 342U - Siemens; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 350 x 235 mm / 19.7 x 13.8 x 9.3 inch

• Price in first year of sale
• 407.00 pengö

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
