• Country
• Hungary

• Manufacturer / Brand
• Siemens; Budapest

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121889

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

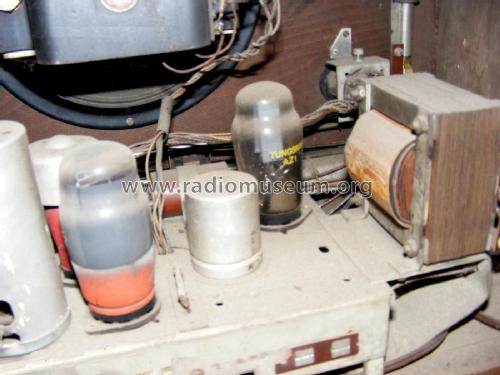

• ECH4 EBF2 EF9 EL3 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch

• from Radiomuseum.org

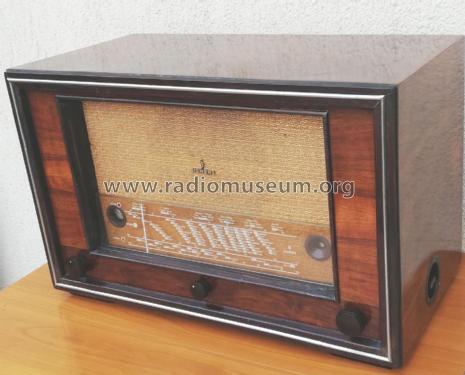

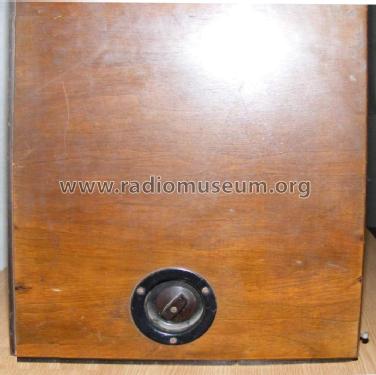

• Model: 442V - Siemens; Budapest

• Dimensions (WHD)
• 610 x 390 x 315 mm / 24 x 15.4 x 12.4 inch

• Notes
• Plus 2 fix band: Budapest I, Budapest II.

• Price in first year of sale
• 469.00 pengö

• Source of data
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
