• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198640

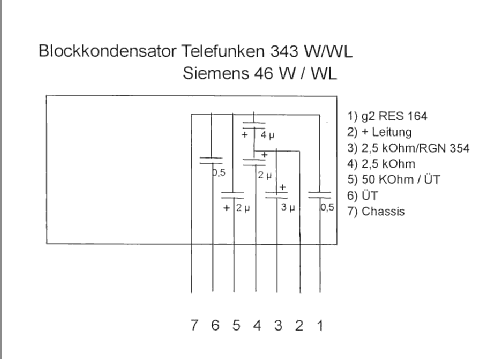

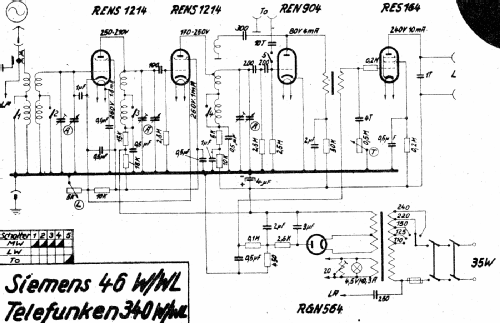

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• RENS1214 RENS1214 REN904 RES164 RGN564

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s); Anode bend detection

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stuttgart 46WL [Flachbau] - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 445 x 270 mm / 17.7 x 17.5 x 10.6 inch

• Notes

• Siehe auch Siemens 46WL Kathedralenform.

• Price in first year of sale
• 318.00 RM

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.

• Other Models

• Here you find 2521 models, 2118 with images and 1334 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
