- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1929/1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5590
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- TRF with regeneration; 2 Special; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org

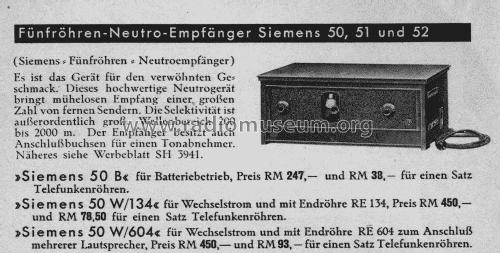

- Model: 50W-604 - Siemens & Halske, -Schuckert
- Notes
- Ch=Rfe31a/b;b=NF-Trafo!
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange + FS-Bestückungstabellen
