• Country
• Hungary

• Manufacturer / Brand
• Siemens; Budapest

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121895

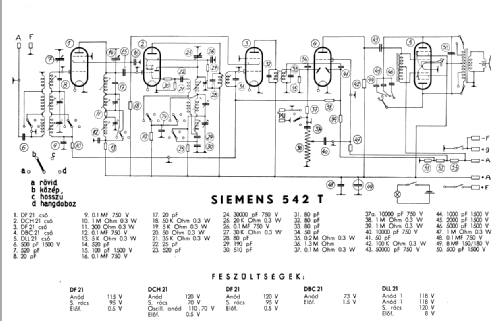

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• DF21 DCH21 DF21 DBC21 DLL21

• Main principle
• Superhet with RF-stage; ZF/IF 472 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 120 & 2 &1,4 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Szuper 542T - Siemens; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 515 x 345 x 220 mm / 20.3 x 13.6 x 8.7 inch

• Price in first year of sale
• 447.00 pengö

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
