- Country
- Italy
- Manufacturer / Brand
- Siemens Italia; Milano
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104383

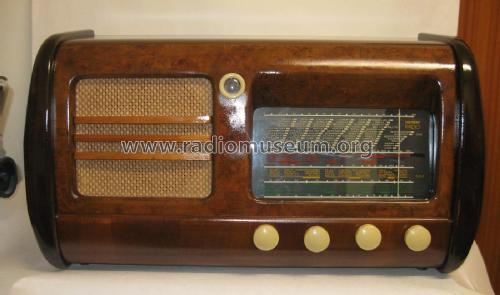

radio della mia collezione
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 469 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: S640 - Siemens Italia; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 670 x 370 x 270 mm / 26.4 x 14.6 x 10.6 inch
- Source of data
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 146)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
