• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1961 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 110961

• Number of Tubes
• 7

• Valves / Tubes
• EF40 EF40 ECC83 ECC83 ECC83 EL34 EL34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (max.)

• Material
• Metal case

• from Radiomuseum.org

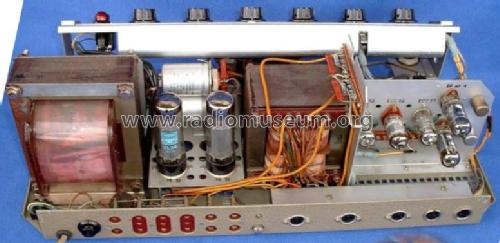

• Model: ELADYN-Tischverstärker 100 Watt 6S Ela2600d - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 190 x 250 mm / 20.5 x 7.5 x 9.8 inch

• Notes
• 100-V-Ausgang.

• Net weight (2.2 lb = 1 kg)
• 20.6 kg / 45 lb 6 oz (45.374 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
