• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1952/1953

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 19324

• Number of Tubes
• 6

• Valves / Tubes

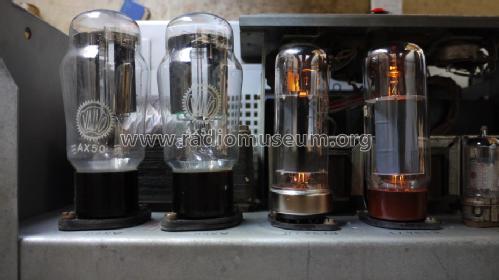

• EF40 EF40 EL34 EL34 AX50 AX50

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 6SEla2780 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 520 x 238 x 185 mm / 20.5 x 9.4 x 7.3 inch

• Notes
• Dreistufiger Endverstärker für Anlagen in Verbindung mit dem Steuerverstärker 6S Ela 2117.

• Net weight (2.2 lb = 1 kg)
• 19.5 kg / 42 lb 15.2 oz (42.952 lb)

• Price in first year of sale
• 1,160.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1952/53
