• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1950–1953

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 19318

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AF7 AF7 AF7 EL12/375 AZ12

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 8 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

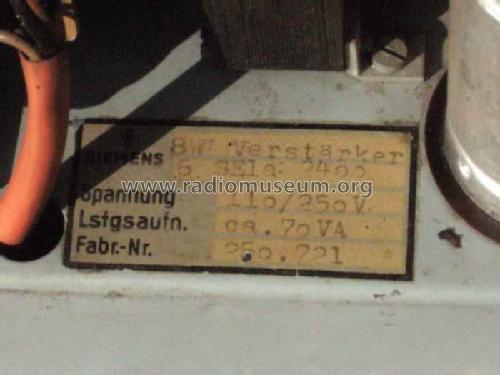

• Model: SV8 6SEla2400 - Siemens & Halske, -Schuckert

• Dimensions (WHD)
• 300 x 185 x 176 mm / 11.8 x 7.3 x 6.9 inch

• Net weight (2.2 lb = 1 kg)
• 6.3 kg / 13 lb 14 oz (13.877 lb)

• Price in first year of sale
• 225.00 DM

• External source of data
• Erb

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51
