• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1950

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 142465

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• EF14

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Antennenverstärker SAV303W - Siemens & Halske, -Schuckert

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 125 x 120 x 185 mm / 4.9 x 4.7 x 7.3 inch

• Notes

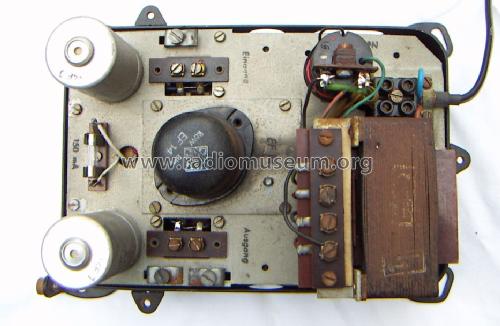

• Der Siemens Antennenverstärker SAV303W deckt den Frequenzbereich 150 kHz...1605 kHz ab. Ein- und Ausgang über Schraubklemmen oder koaxiale Buchsen anschliessbar. Leistungsaufnahme 13 Watt. Gehäuse aus Metall mit Belüftungsrippen oben, Wandmontage.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Richard Brand. See "Data change" for further contributors.
