• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1935/1936

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 197778

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• REN904 RES164 RGN354

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

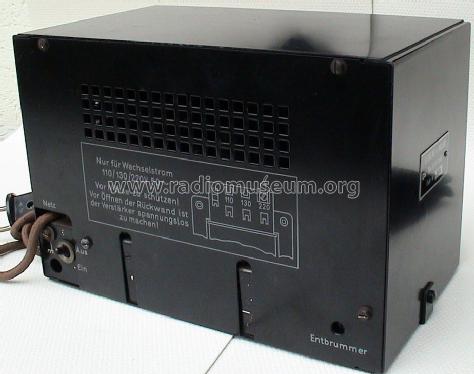

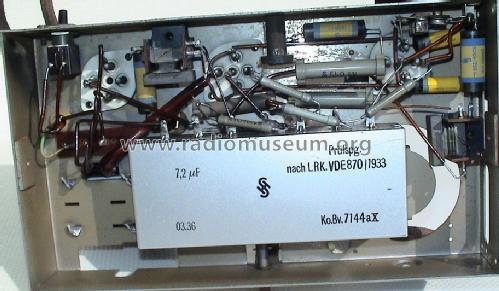

• Model: Antennenverstärker SAV71aW - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 255 x 175 x 150 mm / 10 x 6.9 x 5.9 inch

• Notes

• Antennenverstärker für Gemeinschafts-Antennen-Anlagen, Identisch mit Telefunken LV031W, Antenneneingänge A1, A2, A3, Erdanschluss, Sperrkreis für MW, Ausgang zur Verteilungsleitung.

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Price in first year of sale
• 130.00 RM

• Source of data
• -- Schematic

• Circuit diagram reference
• Schenk-Regelien

• Mentioned in
• GFGF-Themenheft 7, Gemeinschafts-Antennenverstärker 1933-1945

• Literature/Schematics (2)
• Lange / Nowisch, "Empfängerschaltungen der Radioindustrie" (IX, S.330)

• Author
• Model page created by Ingolf Ludwig. See "Data change" for further contributors.
