- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1949/1950
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 5279
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: SH597AB - Siemens & Halske, -Schuckert
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 260 x 140 x 300 mm / 10.2 x 5.5 x 11.8 inch
- Notes
-

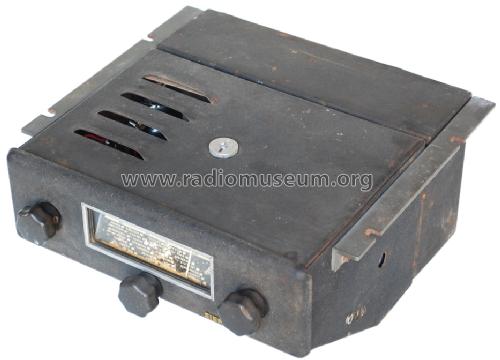

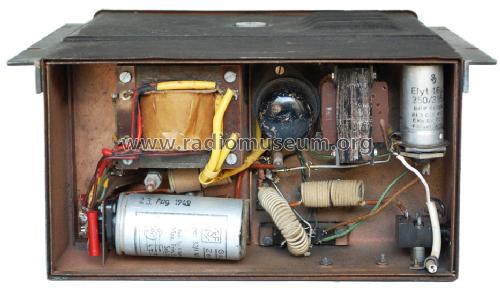

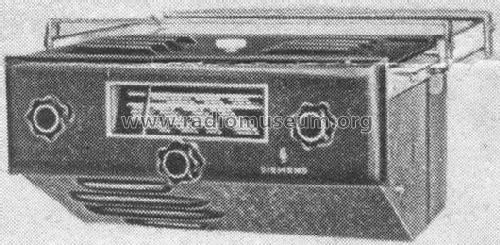

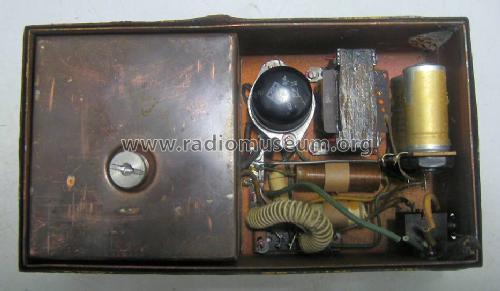

Der Lautsprecher befindet sich im Radiogehäuse, welches unter dem Armaturenbrett angebaut wir. Ein zweites Gehäuse zum Aufstecken enthält Zerhackerpatrone, Transformator und Gleichrichterröhre (EZ11).
Khe;[FS4914]id.697AB in Kat.??
- Net weight (2.2 lb = 1 kg)
- 9.2 kg / 20 lb 4.2 oz (20.264 lb)
- Price in first year of sale
- 585.00 DM
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange-Nowisch
- Mentioned in
- Funkschau (4916)
