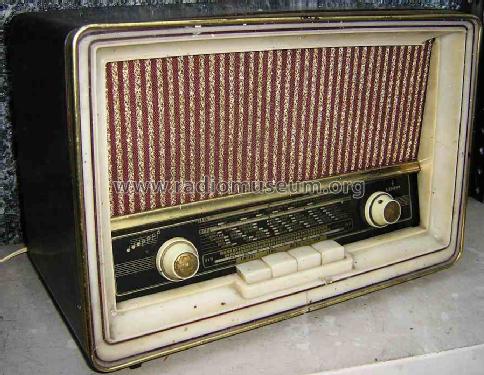

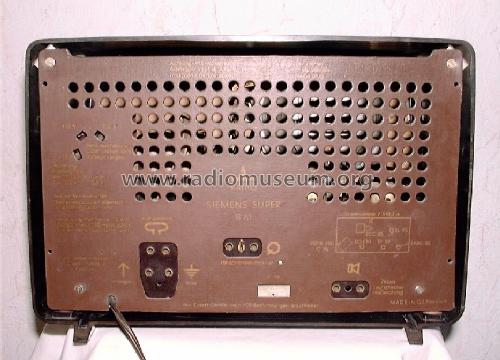

Super B61

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1956–1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20637

• Picture
• Schematics

Previous Next

Previous Next

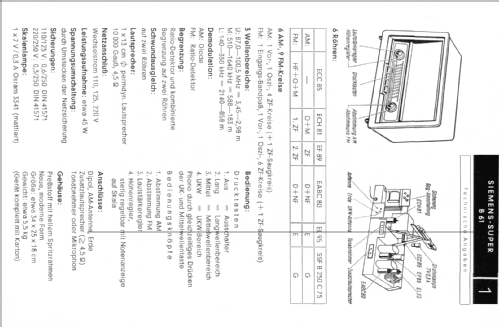

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL95

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Super B61 - Siemens & Halske, -Schuckert

• Shape

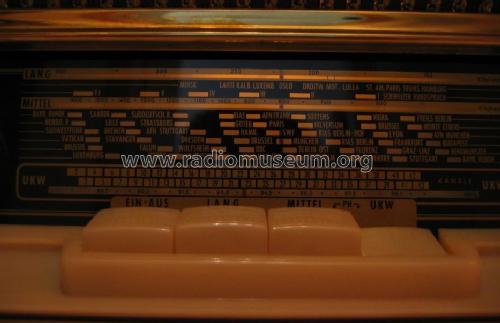

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 250 x 180 mm / 13.4 x 9.8 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Price in first year of sale
• 208.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 2521 models, 2118 with images and 1334 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
