• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1982 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 226566

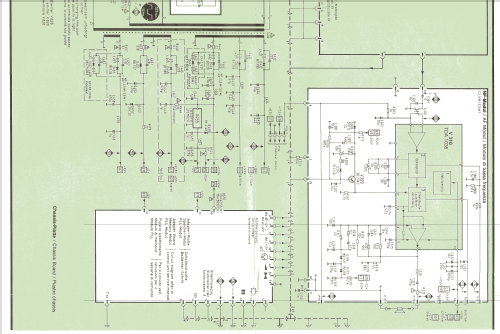

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Various materials

• from Radiomuseum.org
• Model: Bildmeister FC740 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 445 x 420 mm / 26 x 17.5 x 16.5 inch

• Notes

• Bildmeister FC740, 16 Programme, Allbereichstuner auch Kabel, in Farbe:Nußbaum.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
