Bildmeister FF 90 Electronic
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1968 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 307569

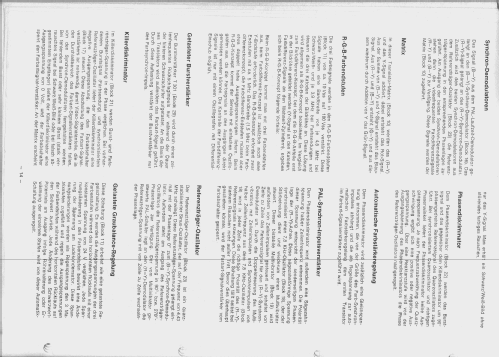

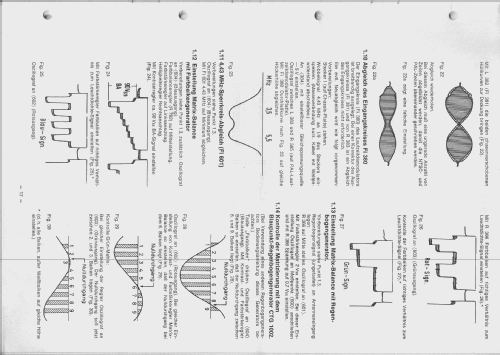

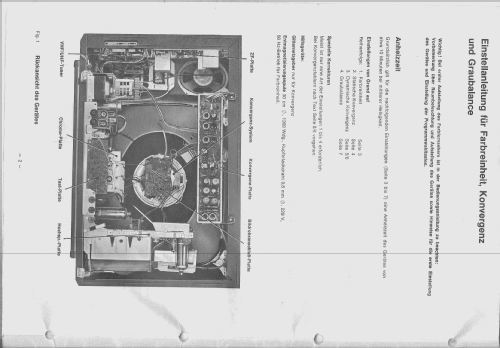

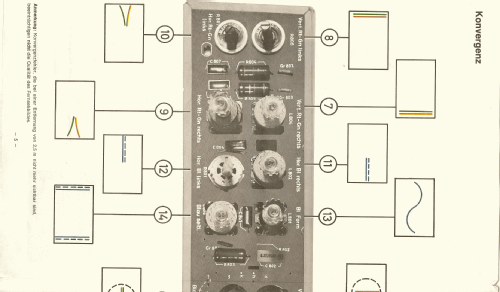

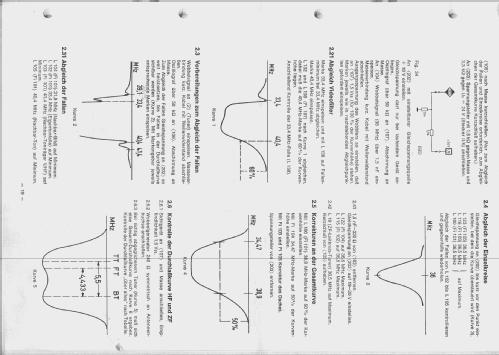

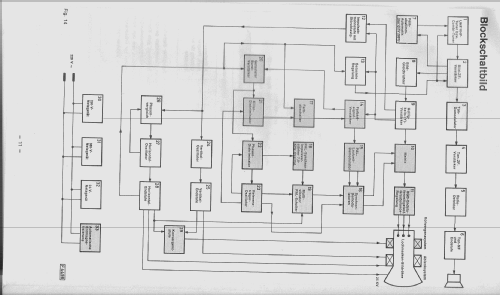

Servicemanual Siemens Bildmeister FF 90

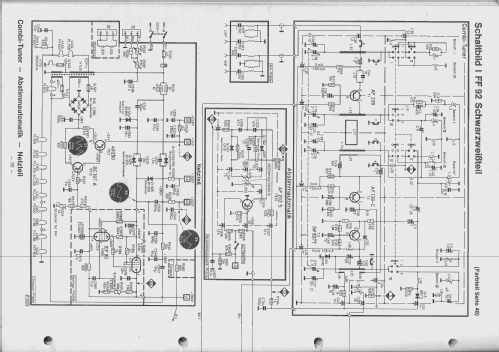

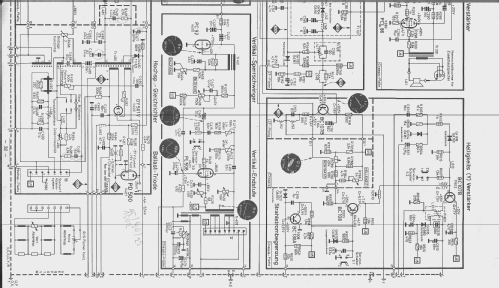

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- EF80 PL509 PCL86 PC92 PL508 PCF802 PL509 PY500 GY501 PD500 PCL200 PCL200 PCL200 A63-11X
- Number of Transistors
- 40
- Semiconductors
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 5 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Bildmeister FF 90 Electronic - Siemens & Halske, -Schuckert
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
58 Dioden, 5 Netzgleichrichter, 1 Glimmröhre
- Net weight (2.2 lb = 1 kg)
- 48 kg / 105 lb 11.6 oz (105.727 lb)
- Price in first year of sale
- 2,000.00 DM
