• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1968/1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 348862

• Number of Tubes
• 6

• Valves / Tubes
• A31-15W

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Bildmeister FK10 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 375 x 250 x 265 mm / 14.8 x 9.8 x 10.4 inch

• Notes

• VHF/UHF-Einblock-Tuner mit Einknopf-Programmwähler.

  Siehe auch Blaupunkt Scout 7.678.030

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in

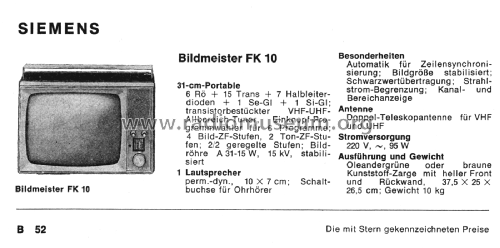

• Handbuch VDRG 1968/1969 (S. B52)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
