- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1969–1971
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 102680
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 0
- Valves / Tubes
- A31-19W
- Number of Transistors
- 28
- Semiconductors
- AF239 AF139 IW8377 AF200 BF173 BC108 BF110 ULN2111A or. TAA710 AC162 AC187 AC188 AC121 BC129 BC153 DW7039 S7030 AD161 AD162 DW6208 AC153 40440 AD149 OA90 OA161 SFD89 M40C4 SFD108 AY102 BYX10 1A-GH ZG4B TV13
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Batteries (any type) / 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

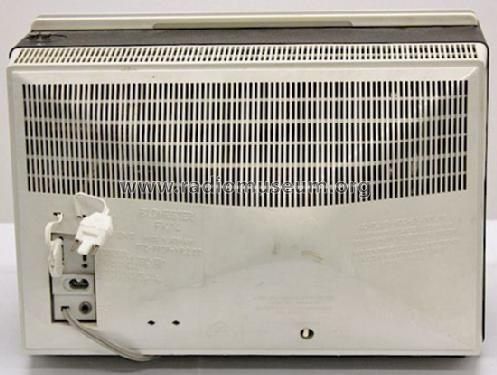

- Model: Bildmeister FK14 - Siemens & Halske, -Schuckert
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 375 x 260 x 290 mm / 14.8 x 10.2 x 11.4 inch
- Notes
-
VHF/UHF-Einknopf-Programmwähler. 1 IC im Ton-ZF-Verstärker.

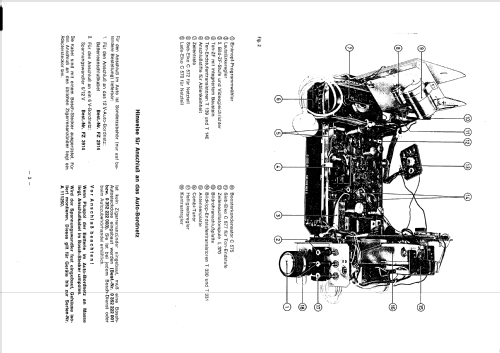

Externe Batteriestromversorgung 12 V oder 6 V mit Gleichspannungswandler. Preis in Österreich ATS 4900.- (Stand 1970)Halbleiter je 1x pro Typ gelistet.
Siehe auch technisch identisches Modell Blaupunkt Scout 7.679.020
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 498.00 DM
- Mentioned in
- Handbuch RFP 1969/70 S. 114

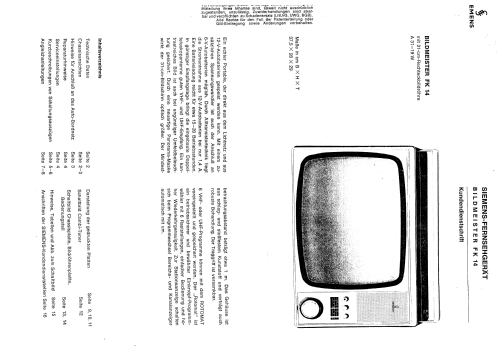

- Literature/Schematics (1)
- Handbuch VDRG 1969/1970 (S. B49)
- Author
- Model page created by Andreas Echtner. See "Data change" for further contributors.
