• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1963/1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 108624

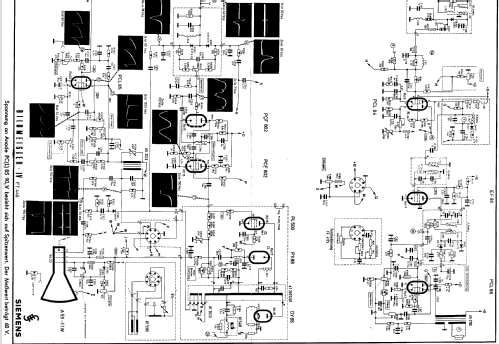

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF86 PC88 PC86 EF183 EF80 PCL84 PCL86 ECH84 PCL85 PCF802 PL500 PY88 DY86 A59-11W

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bildmeister IV FT446 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 520 x 390 mm / 24.4 x 20.5 x 15.4 inch

• Notes
• EF80 dreimal vorhanden. VHF/UHF. Anschraubbare Beine gegen Mehrpreis (25,- DM).

• Net weight (2.2 lb = 1 kg)
• 30.6 kg / 67 lb 6.4 oz (67.401 lb)

• Price in first year of sale
• 968.00 DM

• Source of data
• Handbuch VDRG 1963/1964

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
