• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1991 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 143824

• Picture

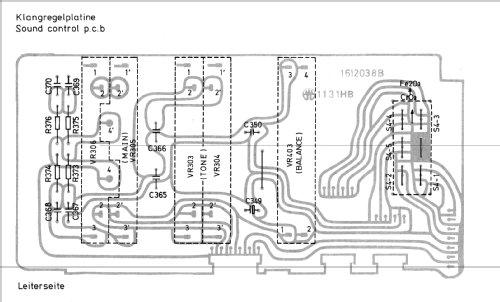

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Club RM723 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 410 x 260 x 110 mm / 16.1 x 10.2 x 4.3 inch

• Notes
• ICs 6; Stereo Radiorecorder.

• Net weight (2.2 lb = 1 kg)
• 4.350 kg / 9 lb 9.3 oz (9.581 lb)

• Mentioned in
• Original Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
