- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1983 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144097

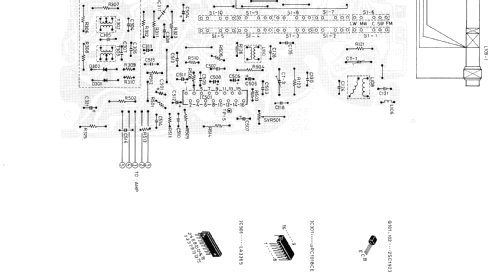

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 5x1,5 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 2 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Club RM766 - Siemens & Halske, -Schuckert
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 415 x 220 x 120 mm / 16.3 x 8.7 x 4.7 inch
- Notes
-
4 ICs; Stereo Radiorecorder; Kurzwellenlupe.
- Net weight (2.2 lb = 1 kg)
- 2.930 kg / 6 lb 7.3 oz (6.454 lb)
- Mentioned in
- Original Siemens Service Unterlagen
- Literature/Schematics (1)
- Prospekt: Siemens Radiogeräte 1983
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
