• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10681

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF256 AF121 AF126 AF121 AF256 BC148 AC122 ANi AC186 AC131 2,1-St10 AA112 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

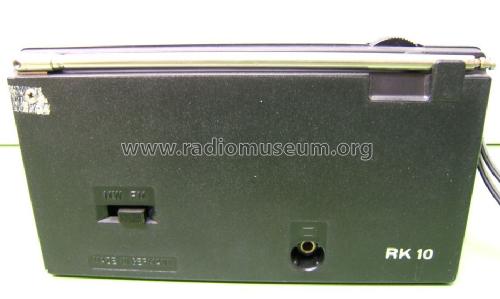

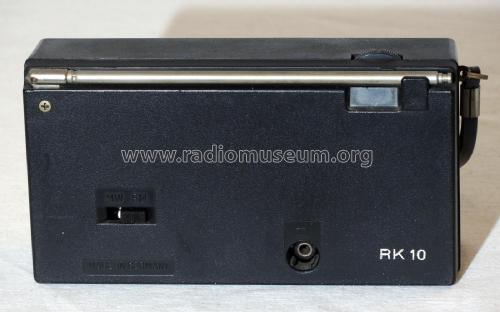

• Model: Cordly RK10 7.658.150 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 160 x 86 x 41 mm / 6.3 x 3.4 x 1.6 inch

• Notes

• Gehäuse anthrazit, Front mit Chromfolie.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• External source of data
• E. Erb 3-907007-36-0
