Cordly RK20 7.659.105

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5192

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF121 AF126 AF121 BF243 BC148 AC122 ANi AC131 AC186 2,1-St10 AA112 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

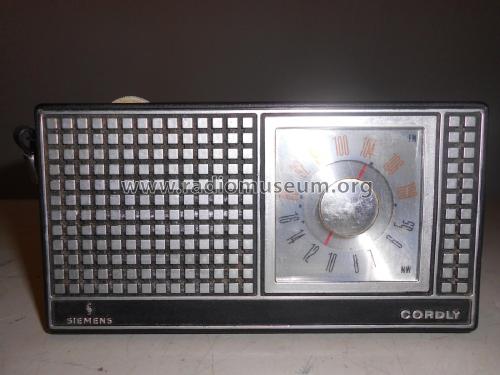

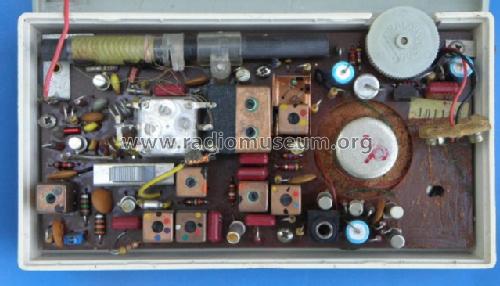

• Model: Cordly RK20 7.659.105 - Siemens & Halske, -Schuckert

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 87 x 38 mm / 6.3 x 3.4 x 1.5 inch

• Notes

• Herstellung Blaupunkt. Siehe auch Swing Q 7.659.110.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (4)
• -- Schematic

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
