- Country
- Great Britain (UK)
- Manufacturer / Brand
- Siemens Bros.; London
- Year
- 1922
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 76081
- Number of Tubes
- 1
- Main principle
- Crystal or Solid State Detector with Amplifer
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: CV - Siemens Bros.; London
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 9.5 x 5.5 x 8.5 inch / 241 x 140 x 216 mm
- Notes
-

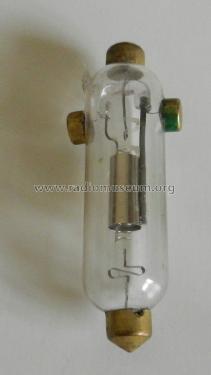

Could be used as crystal receiver, with or without LF amp, or as a 1 valve receiver; plug in coils for wave change;
BBC stamp; GPO No.0107

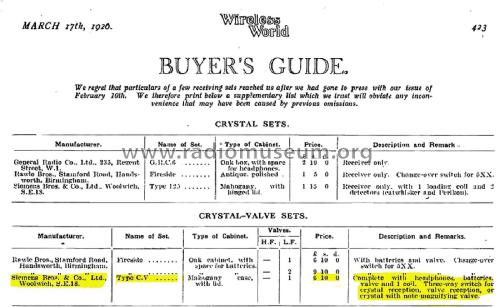

Price listed in Wireless World, March 17 1926, as £6/10/-.
- Source of data
- Radio! Radio!
- Mentioned in
- Tickling the Crystal; Sanders (vol.2; p.1p.165,166)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
