- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137959
Q = katalogus 1960 "radio creations"

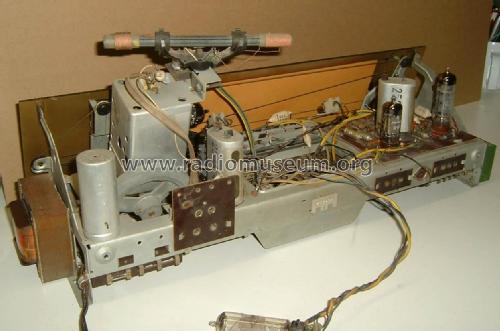

The radio belongs to the VRT Omroepmuseum
The radio belongs to the VRT Omroepmuseum
The radio belongs to the VRT Omroepmuseum
The radio belongs to the VRT Omroepmuseum
The radio belongs to the VRT Omroepmuseum
The radio belongs to the VRT Omroepmuseum
The radio belongs to the VRT Omroepmuseum
The radio belongs to the VRT Omroepmuseum
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: D90 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 560 x 320 x 225 mm / 22 x 12.6 x 8.9 inch
- Notes
-
Elliptic loudspeaker, and 2 electrostatic tweeters.
- Price in first year of sale
- 5,950.00 BFr
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- Q = katalog 1960 "radio creations"
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
- Other Models
-
Here you find 2521 models, 2118 with images and 1334 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Siemens & Halske, -: D90
Threads: 2 | Posts: 6
Dear forum members,
the tunig dial of this radio shows 4 (blanc) horizontal lines.
The top line has at the left Bayer(ische) R(undfunk) and Saar, at the right Westd(eutsche) Rundf(unk).
Next line left Nordd(eutsche) Rundf(unk), right Berlin Ostd(eutschland)
The third line left Südwestfunk and right Hess(ischer) R(undfunk) and AFN (American Forces Network) and BFN (British Forces Network?).
Finally the fourth line has left a blanc space and right Südd(eutsche) R(undfunk) and Bremen.
But the space between those transmitter names is left blanc. Only the top line has two little markings. What is the purpose of this?
Please refer to the picture enclosed.
Best regards
Attachments
- Schaal detail (124 KB)
Georges Van Campenhout † 28.4.22, 14.Oct.18
der Forum members
Can anyone help me in the identification of this 2 capacitors? I found them in this radio.
What about their long term quality?
Best regards
Attachments
- Condensatoren (56 KB)
Georges Van Campenhout † 28.4.22, 06.Oct.18
