- Country
- Switzerland
- Manufacturer / Brand
- Siemens Elektrizitätserzeugnisse AG, Zürich
- Year
- 1949
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 195200
-
- alternative name: Siemens EAG; Schweiz
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110: 125: 145: 220: 250: Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: E6 - Siemens
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 260 x 180 x 120 mm / 10.2 x 7.1 x 4.7 inch
- Notes

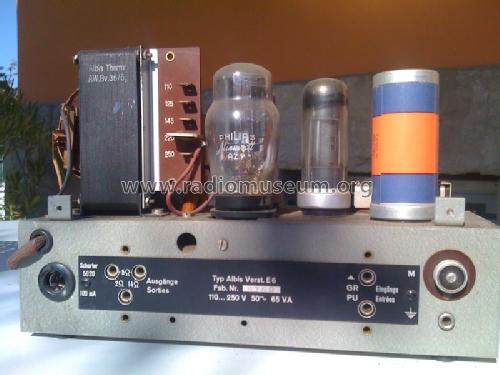

- 2 Eingänge: Micro und Plattenspieler. Verschiedene Ausgangsimpedanzen wählbar. Graues Metallgehäuse. Ausgangsimpedanzen: 2, 5 und 14Ohm
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Christophe Howald. See "Data change" for further contributors.
