• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1951–1954

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 19151

• Number of Tubes
• 5

• Valves / Tubes
• EF14 EF14 EL12/325 EL12/325 AZ12

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 25 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

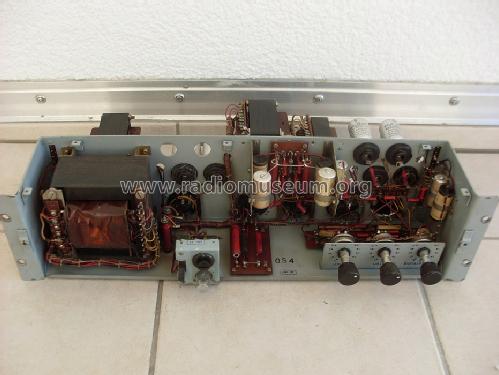

• Model: Eladyn-Vollverstärker 6SEla2523 - Siemens & Halske, -Schuckert

• Shape
• Rack

• Dimensions (WHD)
• 520 x 134 x 240 mm / 20.5 x 5.3 x 9.4 inch

• Notes
• Siemens Gegentakt-Vollverstärker 6 S Ela 2523.
  1 Eingang: 100 mV/100 kOhm, Ausgang: 100 V/400 Ohm; Frequenzgang: 50···10000 Hz.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 550.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1951/52

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1953/54
