• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1929

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 123143

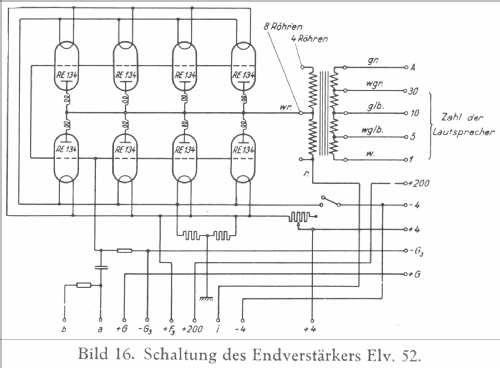

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• RE134 RE134 RE134 RE134 RE134 RE134 RE134 RE134

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage and/or dry batteries / 4 & 200-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Endverstärker Elv52 - Siemens & Halske, -Schuckert

• Shape
• Rack

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
