• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1953 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 168853

• Number of Tubes
• 17

• Valves / Tubes
• EF80 EF80 EF80 EF80 EF85 EF85 ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 EQ80 EB41 EL41

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

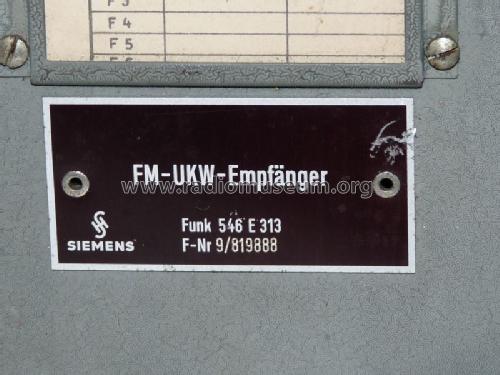

• Model: FM-UKW Empfänger Funk 546 E313 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 180 x 150 x 450 mm / 7.1 x 5.9 x 17.7 inch

• Notes
• Stromversorgung über Hauptapparat.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
