• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1975 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 194013

• Number of Tubes
• 1

• Valves / Tubes
• D10-191GH

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Metal case

• from Radiomuseum.org

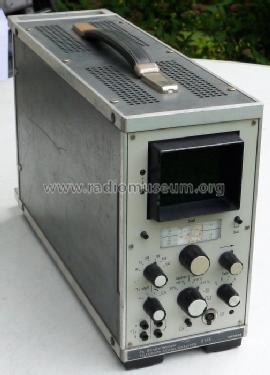

• Model: Fs-Sendermesser 2 H3 S 22562-H103-A1 GS1 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 135 x 240 x 430 mm / 5.3 x 9.4 x 16.9 inch

• Notes
• Siemens Fs-Sendermesser 2 H3,(Telegraph-Signal-Analyzer) S 22562-H103-A1 GS1;
  Baud Anzeige & Oszi-Bildschirm, made in Germany.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
