• Year
  • 1959/1960
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 74381

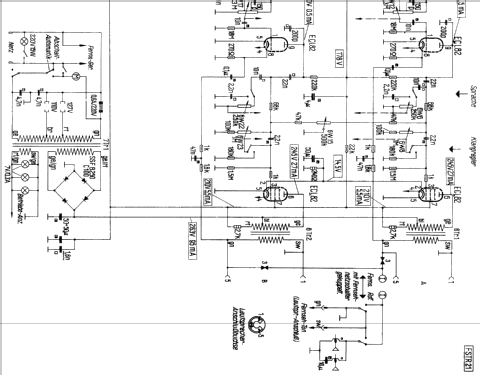

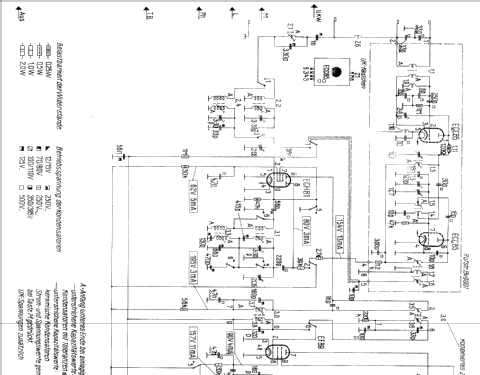

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: FSTR21 - Siemens & Halske, -Schuckert
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 1350 x 850 x 450 mm / 53.1 x 33.5 x 17.7 inch
  • Notes
  • Fernseh-Chassis = T943, jedoch mit 53-cm-Bildröhre;
    Rundfunk-Chassis = E9 Stereo;
    Phono-Chassis = Dual 1007.
    Für Stereo-Wiedergabe ist eine externe LS-Box notwendig.
  • Net weight (2.2 lb = 1 kg)
  • 66 kg / 145 lb 6 oz (145.374 lb)
  • Price in first year of sale
  • 1,698.00 DM
  • Author
  • Model page created by Alexander Schmitz. See "Data change" for further contributors.
