- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1959/1960
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 74377
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer); Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FSTR-22 - Siemens & Halske, -Schuckert
- Shape

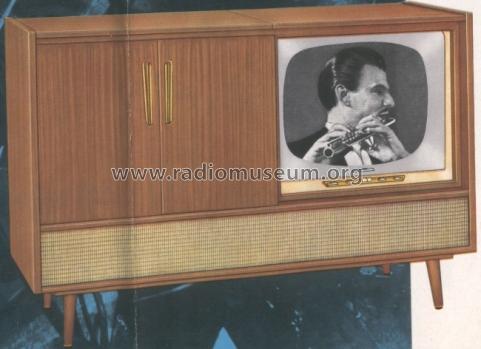

- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1350 x 920 x 460 mm / 53.1 x 36.2 x 18.1 inch
- Notes
- Fernseh-Chassis = T943, jedoch mit 53-cm-Bildröhre;
Rundfunk-Chassis = G9 Stereo;
Phono-Chassis = Perpetuum-Ebner Rex A59.
Zur Stereo-Wiedergabe ist eine zusätzliche LS-Box notwendig.
- Net weight (2.2 lb = 1 kg)
- 86 kg / 189 lb 6.8 oz (189.427 lb)
- Price in first year of sale
- 1,868.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Author
- Model page created by Alexander Schmitz. See "Data change" for further contributors.
