- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1959/1960
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 74382
aus kat.1960
aus kat.1960
Siemens Katalog 1959-60

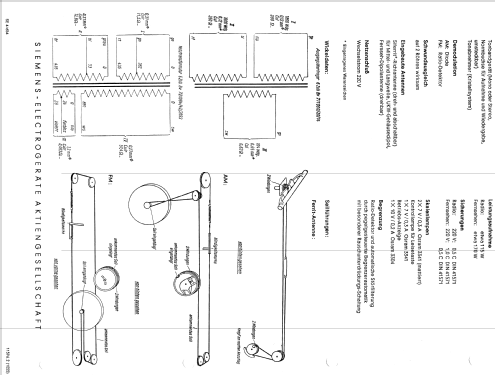

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Changer (Record changer); Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 6 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FSTR23 - Siemens & Halske, -Schuckert
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1680 x 920 x 470 mm / 66.1 x 36.2 x 18.5 inch
- Notes
- Fernseh-Chassis = TL953;
Rundfunk-Chassis = H8 Stereo;
Phono-Chassis = Dual 1006.
2 Lautsprechergruppen in Stereoanordnung.
- Net weight (2.2 lb = 1 kg)
- 120 kg / 264 lb 5.1 oz (264.317 lb)
- Price in first year of sale
- 2,450.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Author
- Model page created by Alexander Schmitz. See "Data change" for further contributors.
