- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1960/1961
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 103789

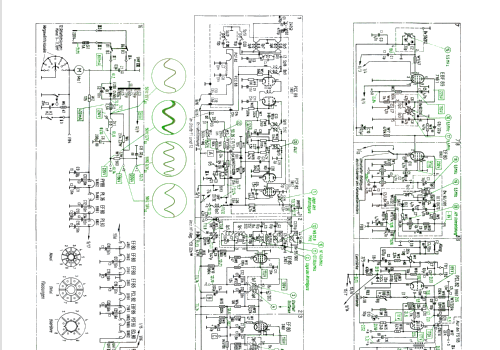

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- AW53-88
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: FT195 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 630 x 550 x 350 mm / 24.8 x 21.7 x 13.8 inch
- Notes
-
VHF; UHF gegen Mehreis (110,- DM), dann 21 Röhren.
siehe auch: Abgleich von UHF Tunern
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Price in first year of sale
- 978.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1960/61
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
