• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1956

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 141741

• Number of Tubes
• 20

• Valves / Tubes
• DF61 1AD4 DC70

• Number of Transistors
• 2

• Semiconductors
• TF78 TF78

• Main principle
• Superhet, double/triple conversion

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 2 & 6 Volt

• Power out
• 0.25 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

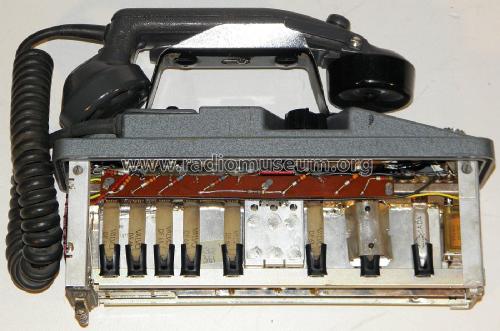

• Model: Funk 546 k 314 b - Siemens & Halske, -Schuckert

• Dimensions (WHD)
• 252 x 220 x 76 mm / 9.9 x 8.7 x 3 inch

• Notes
• Telefonhörer am Haltegriff.
  Frequenzbereich: 4m Band (68 bis 87,5 MHz)
  Quarzfrequenz Empfänger (Fe+2,1):5
  Quarzfrequenz Sender Fs:27

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Armin Eppinger. See "Data change" for further contributors.
