• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1938 ?

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 259681

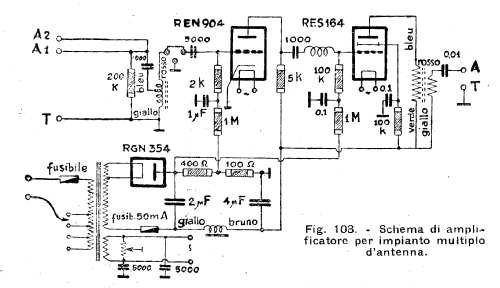

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• REN904 RES164 RGN354

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Gemeinschafts-Antennen-Verstärker SAV571aW - Siemens & Halske, -Schuckert

• Dimensions (WHD)
• 250 x 200 x 170 mm / 9.8 x 7.9 x 6.7 inch

• Notes

• Breitbandverstärker 150...1500 kHz für Gemeinschaft-Antennenanlagen.

  Sperrkreis wahlweise für MW oder LW.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 120.00 RM

• Literature/Schematics (1)
• GFGF Themenheft 7, Gemeinschafts-Antennenverstärker

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
