• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213469

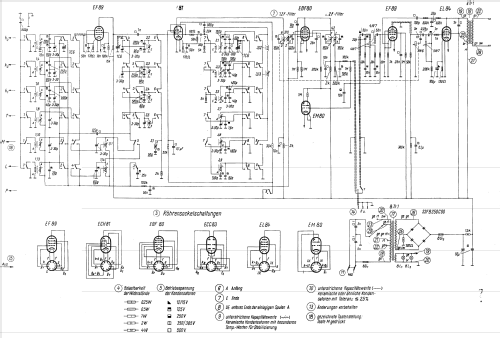

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF89 ECH81 EBF80 EF89 EM80 EL84

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Großsuper 750W - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Notes
• Siemens Großsuper 750 W;
  Exportmodell mit MW, LW, 2 x KW und Tropenband 50 - 150 m. Wohl Tropenausführung.
  Drehkondensator und Ausgangsübertrager sind gekapselt.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Thorsten Finaske. See "Data change" for further contributors.
