Super G7 Kunststoff-Füße
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21207
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 250 Volt
- Loudspeaker
- 5 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

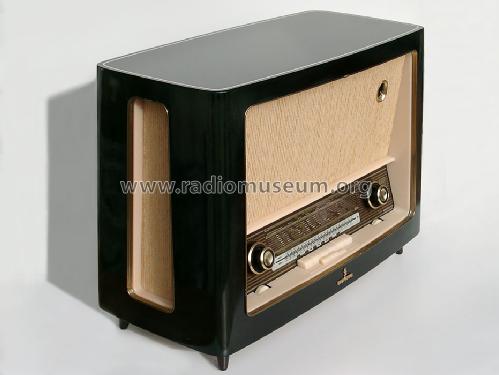

- Model: Super G7 [Kunststoff-Füße] - Siemens & Halske, -Schuckert
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 580 x 420 x 290 mm / 22.8 x 16.5 x 11.4 inch
- Notes
- drehbare Ferritantenne; moderneres Gehäuse.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 418.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58
- Literature/Schematics (1)
- -- Original-techn. papers.
