Hi-Fi-Anlage HFK12 hell
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21957
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 8 AM circuit(s) 14 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hi-Fi-Anlage HFK12 [hell] - Siemens & Halske, -Schuckert
- Shape

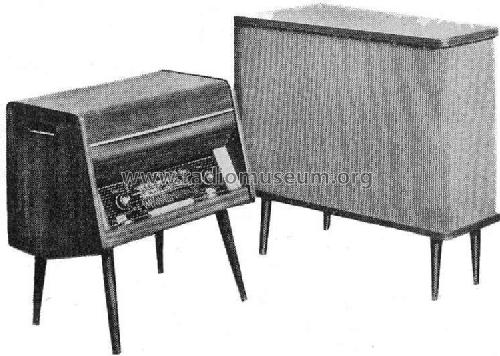

- Console with Push Buttons.
- Notes

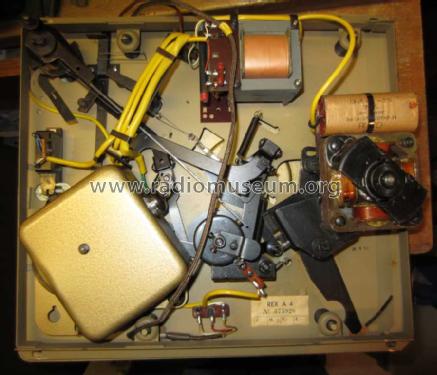

- Phono-Chassis = Perpetuum Ebner Rex A4 Sonderklasse PE7000 ;
Separate Lautsprecherkombination mit 7 LS.
- Price in first year of sale
- 1,560.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
